REVOLUTIONIZE YOUR POWER MANAGEMENT WITH ALLSPARK BLUETOOTH TECHNOLOGY

Discover the future of power storage with the AllSpark Pro-series 12V 100Ah Ultraslim Lithium battery. Designed and developed in Australia by Offroad Living, this high-performance battery integrates cutting-edge Bluetooth technology, allowing you to monitor and manage your power system effortlessly from your smartphone. With a sleek, slimline aluminum case, the AllSpark battery is built to withstand harsh environments while delivering unmatched performance.

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells.  Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.

We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.

BLUETOOTH INTEGRATION

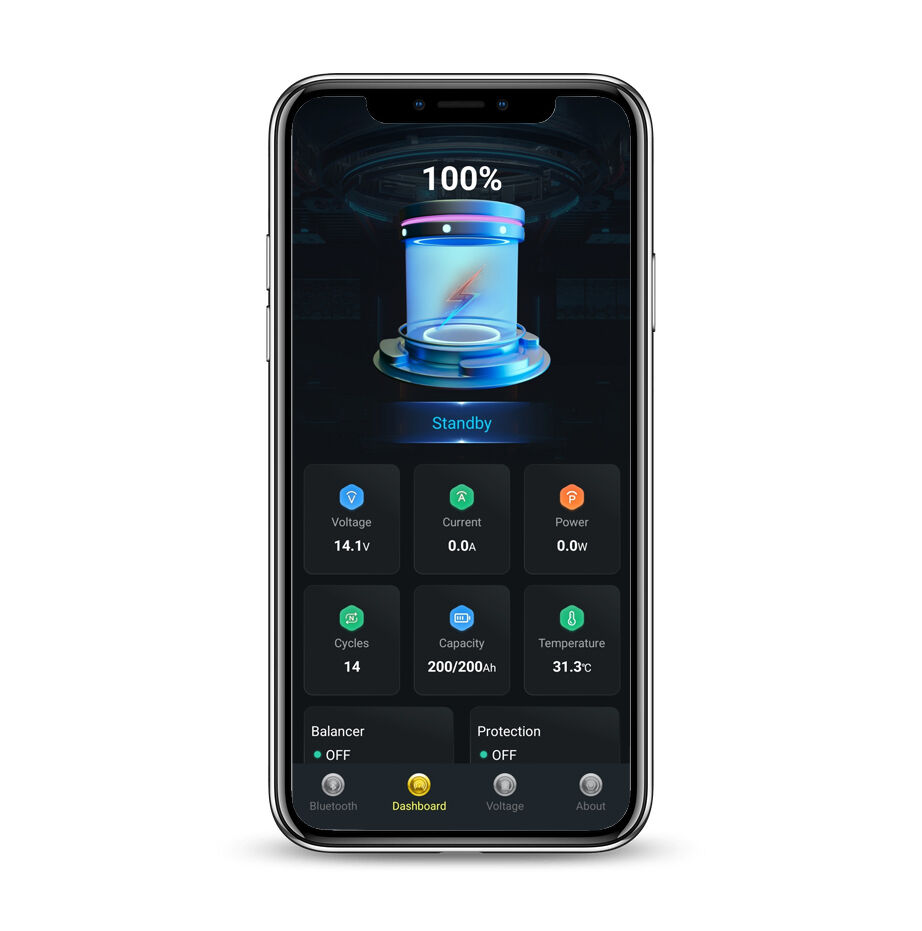

Easily monitor your battery’s performance and health via Bluetooth, accessing real-time data and settings from your smart device. The AllSpark app provides detailed metrics for optimal power management, ensuring comprehensive oversight via Bluetooth, including:

• State of Charge (%): Monitor the exact charge level.
• Total Battery Pack Voltage: Receive precise total voltage readings.
• Current In/Out (Net Value): Track the net current to and from the battery.
• Power In/Out (Net Value): View the net power to and from the battery.
• Cycles: Keep track of the number of cycles completed.
• Capacity: Observe the available amp-hours remaining based on the current state of charge.
• Temperature of BMS: Ensure the Battery Management System maintains optimal operating temperatures.
• Status of BMS: Check if the system status is normal or if it’s in protection mode.
• Status of Balancing of Cells: Assess the cell balancing activities.
• Charge and Discharge On/Off Switch: Utilize this for isolating the battery or waking up a drained battery from sleep mode.
• Individual Cell Voltages: Monitor voltages for each cell, ensuring balanced performance.
• History: Access historical data for informed analysis.
• Serial Number: Verify and reference the unique battery identifier.
• Advanced Settings: Prepare for further enhancements in future updates, scheduled for early 2025.

These parameters empower you with a granular view of your battery system, offering critical insights into its functionality and health.

BATTERY

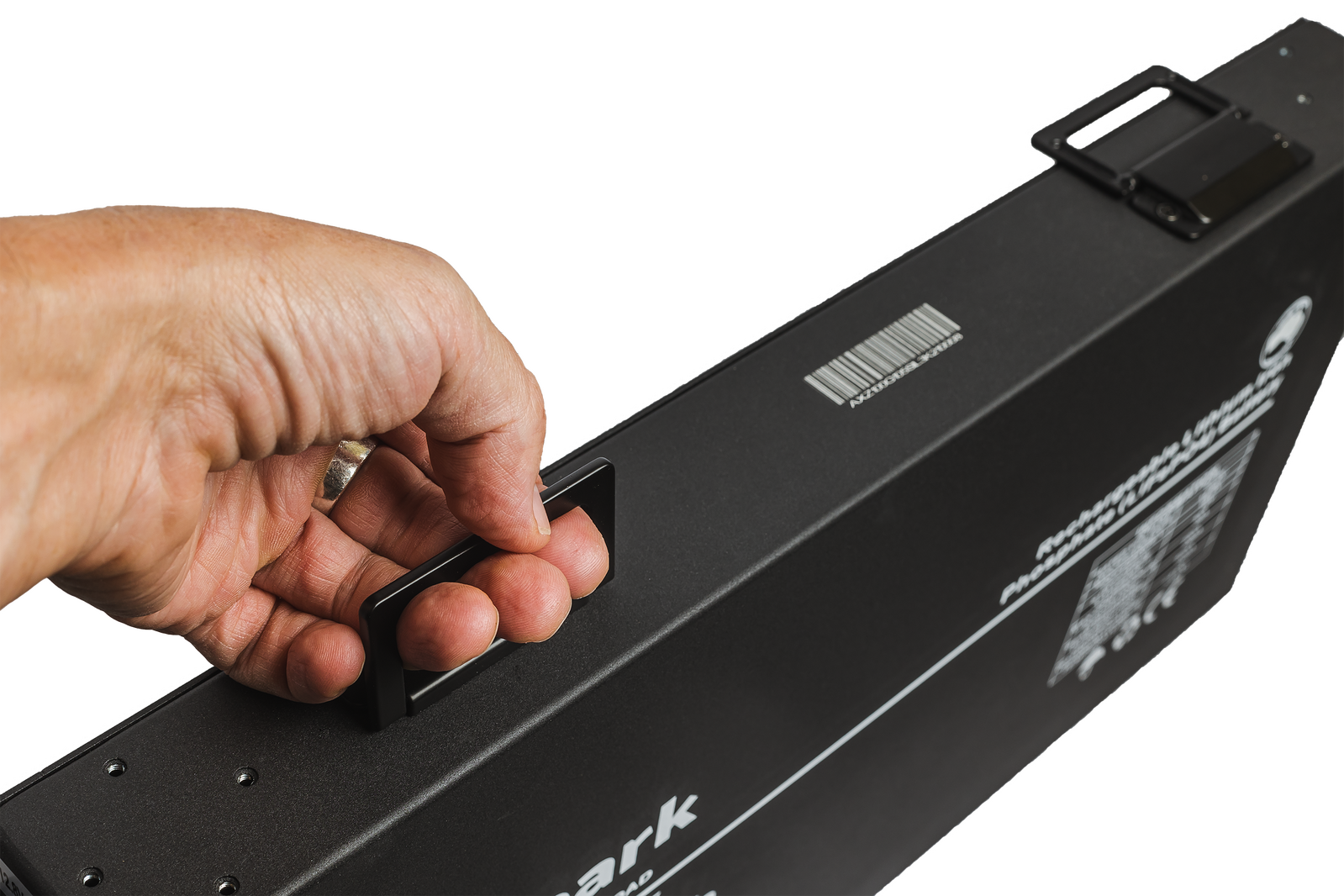

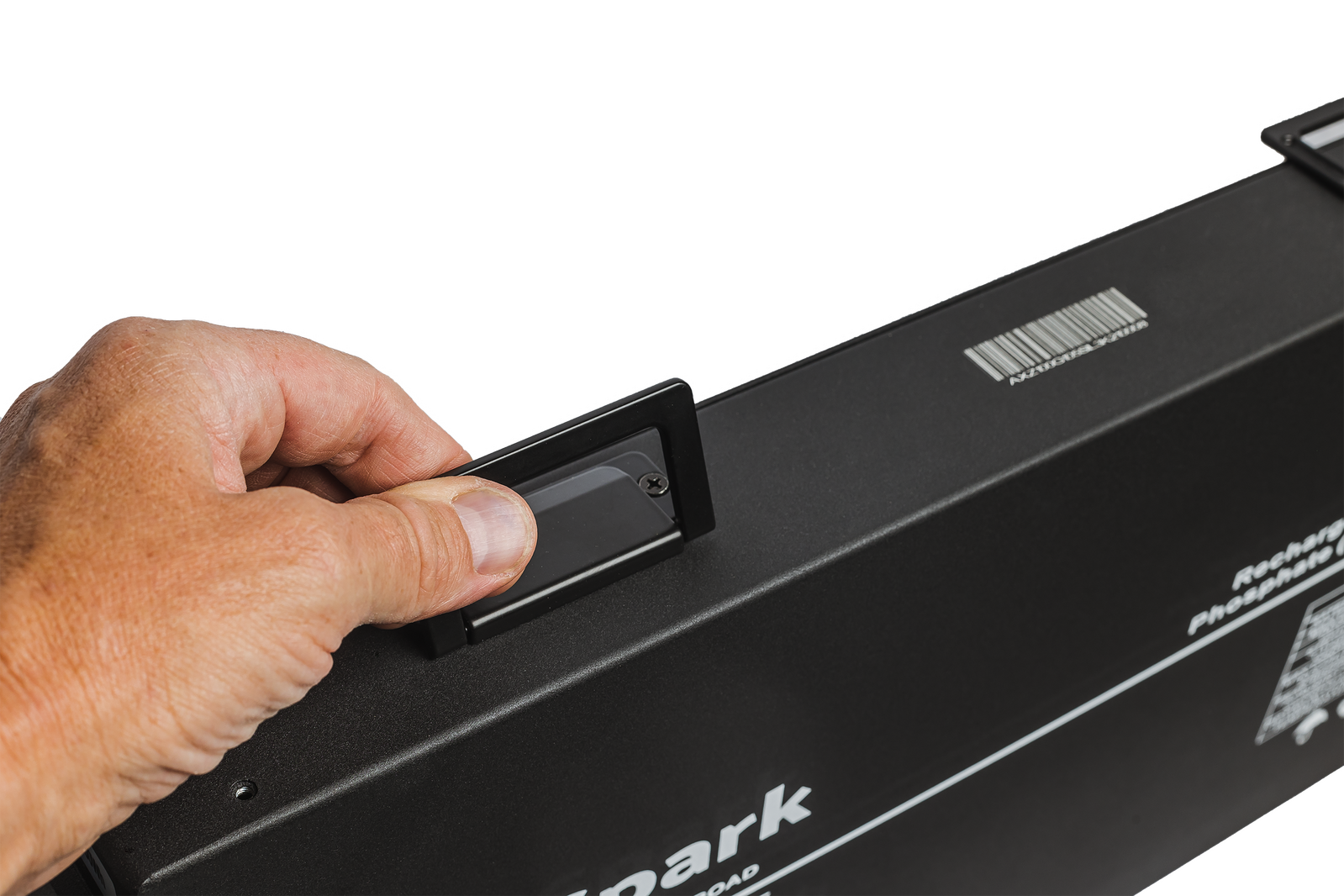

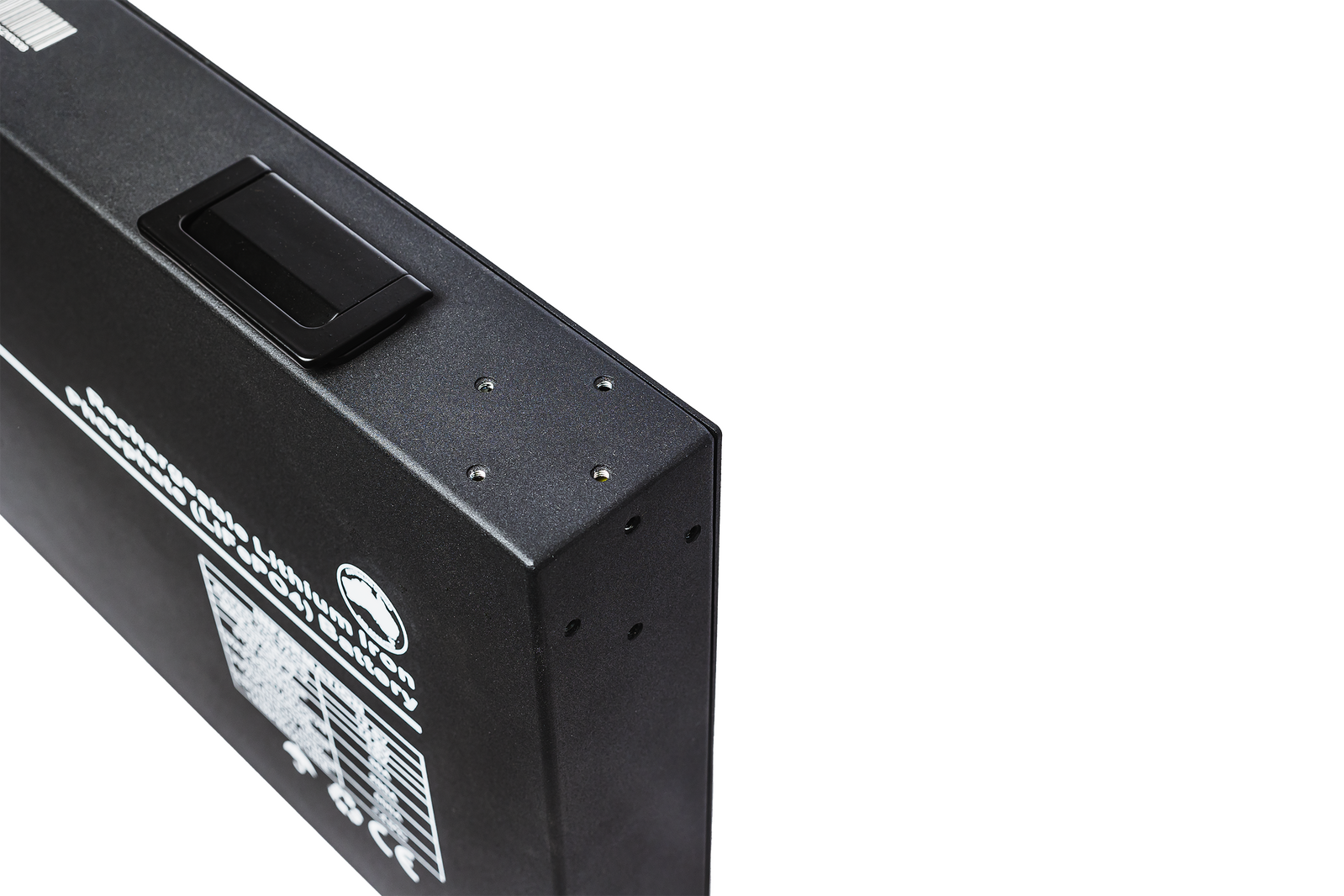

• Ultra Slimline Powdercoated Aluminiun Case with fold out carry handles
• Lightweight powder coated aluminium brackets for easy installation

CELLS

AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells.  They have market leading high current ratings and very long life expectancy.  All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 8, 12 or 16 to achieve 12, 24, 36 or 48V.  With cell continuous discharge ratings of 200A and peak output of up to 500A, you can be assured of a high performing battery to meet your high current demands.

Cell interconnecting Busbars are multi pass laser welded with more than 1″ of weld per busbar connection to make them bullet proof on corrugations.

Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault:

• High Pressure safety release vents that will open to release excess energy
• Internal Cell fusing
• Flame retardant Electrolyte

BATTERY MANAGEMENT SYSTEM (BMS)

Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer:

• Low Voltage Protection
• High Voltage Protection
• Over Current Discharge Protection
• Over Current Charge Protection
• Low Temperature Protection
• High Temperature Protection
• Automatic Cell Balancing
• Short Circuit Protection
• Reverse Polarity Protection

WHATS IN THE BOX

• 1 X 12 Volt 100ah Bluetooth Ultra Slimline LiFePO4 battery – Aluminium powdercoated case
• Fixing kit – 2 lengths of M8 bolts, flat and spring washers
• Red/Black Terminal caps
