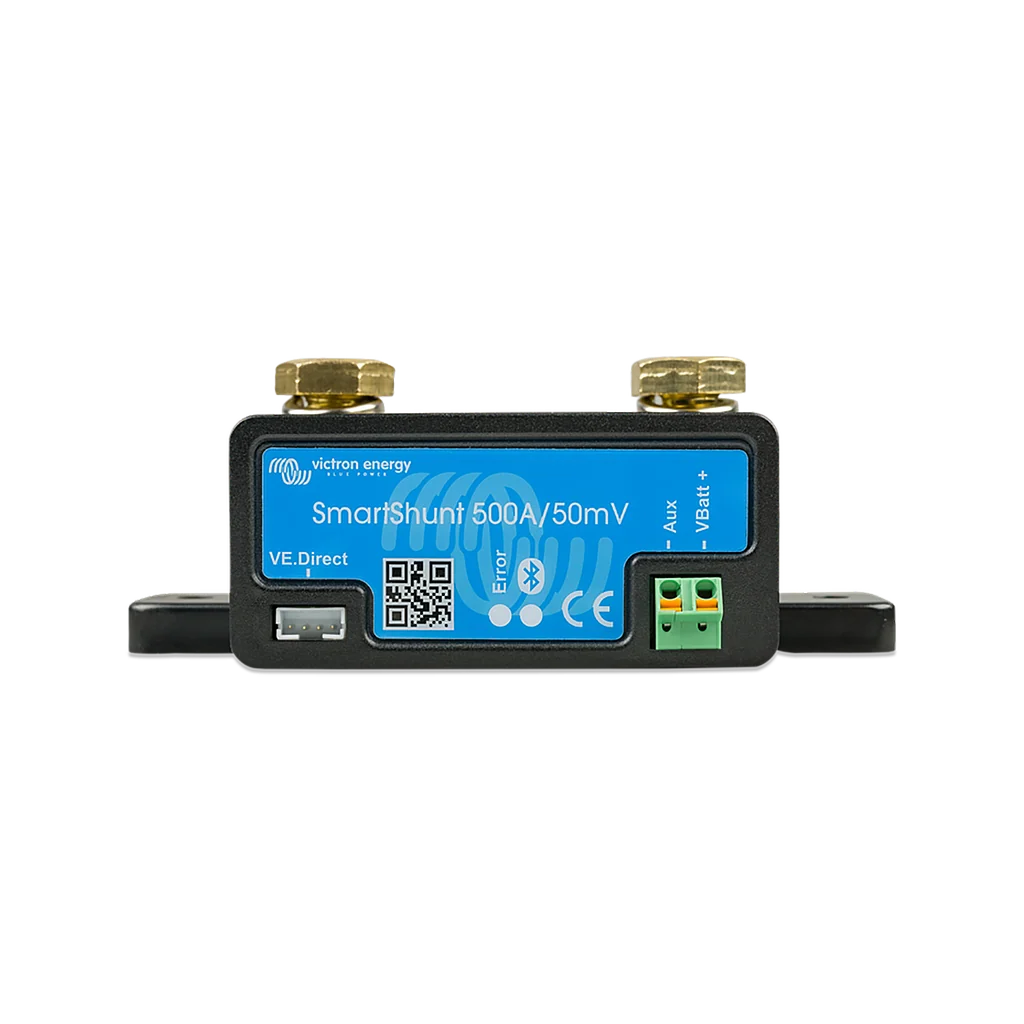

Victron Smart Shunt 500A Battery Monitor with Bluetooth

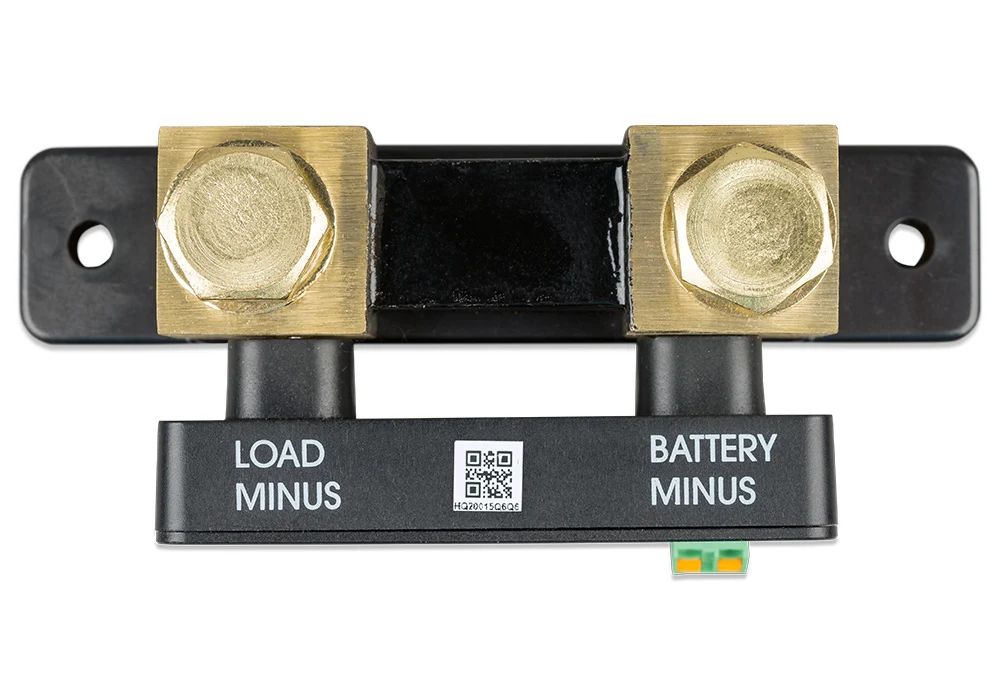

Victron Smart Shunt 500A Battery Monitor with Bluetooth - Image 2

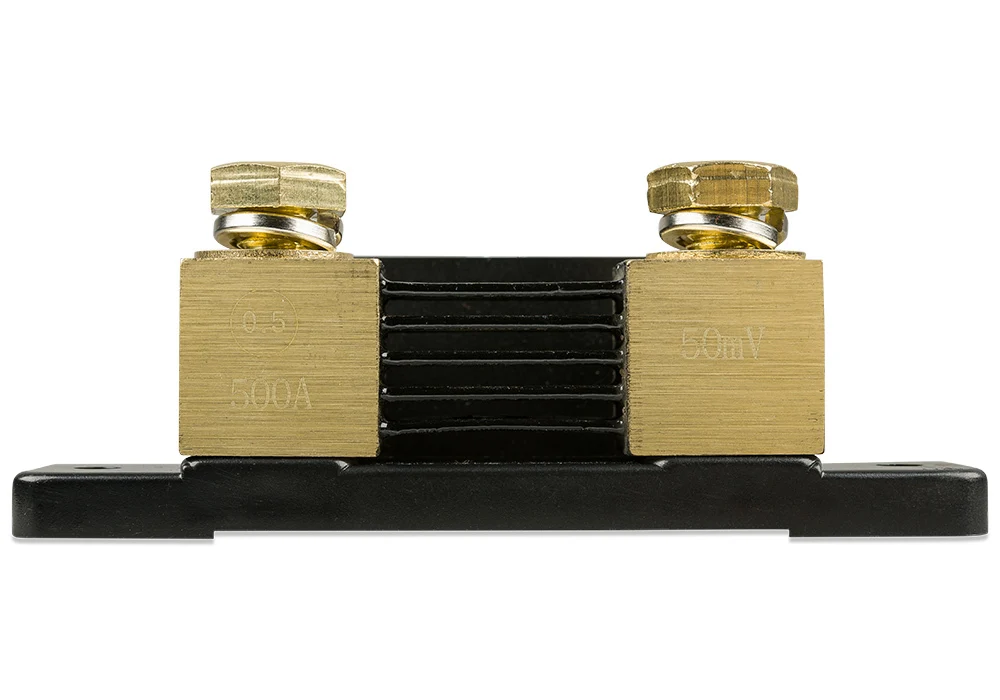

Victron Smart Shunt 500A Battery Monitor with Bluetooth - Image 3
Dual Battery

Victron Smart Shunt 500A Battery Monitor with Bluetooth

Original price was: $179.00.Current price is: $155.00.

ALL IN ONE, BLUETOOTH BATTERY MONITOR

  • Bluetooth compatible
  • View historical data
  • GX Device compatible via a DE direct cable
SKU: SHU050150050 Categories: , Tag: Brand:

Description

ALL IN ONE, BLUETOOTH BATTERY MONITOR

The Victron SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

WHATS IN THE BOX

  • 1 x Victron Smart Shunt 500A Battery Monitor
  • 2 x 1.5m (59″) red cables with fuse

Warranty

5 YEAR MANUFACTURERS WARRANTY

Features

  • Bluetooth compatible – monitor via your smart device using VictronConnect
  • View historical data – kept for up to 45 days
  • Monitor your battery – measures battery voltage and current, calculates state of charge and time to go
  • GX Device compatible via a DE direct cable

Specifications

PRODUCT SPECIFICATIONS – VICTRON SMART SHUNTS

SKU M.VIC-BMVSH500  M.VIC-BMVSH1000 VIC-IP65SS
Supply voltage range (VDC) 6.5 – 70
Current Draw <1mA
Input voltage range, auxillary battery (VDC) 6.5 – 70
Battery capacity (Ah) 1 – 9999
Operating Temperature Range (oC) -40 to 50
Measures coltage of second battery, or temperature, or midpoint Yes
Temperature measurement range (oC) -20 to 50
VE. Direct communication Port Yes
Resolution and Accuracy
Current (A) ±0.01
Voltage (V) ±0.01
Amp hours (Ah) ±0.01
State of charge (0-100%) (%) ±0.01
Time to go (min) ±1
Temperature (if optional temperature sensor connected) (oC) ±1 (0-50)
Accuracy of current measurement (%) ±0.4
Offset (mA) Less than 20 Less than 40 Less than 20
Accuracy of voltage measurement (%) ±0.3
Dimensions (H x W x D mm) 46 x 120 x 54 68 x 168 x 75 46 x 120 x 54
Shunt connection bolts M10
Protection category IP21 IP65
Stored Trends
Data Stored Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored 46

Additional information

Weight 0.450 kg
Dimensions 16.50 × 10 × 5.50 cm
Brand

Victron Energy
