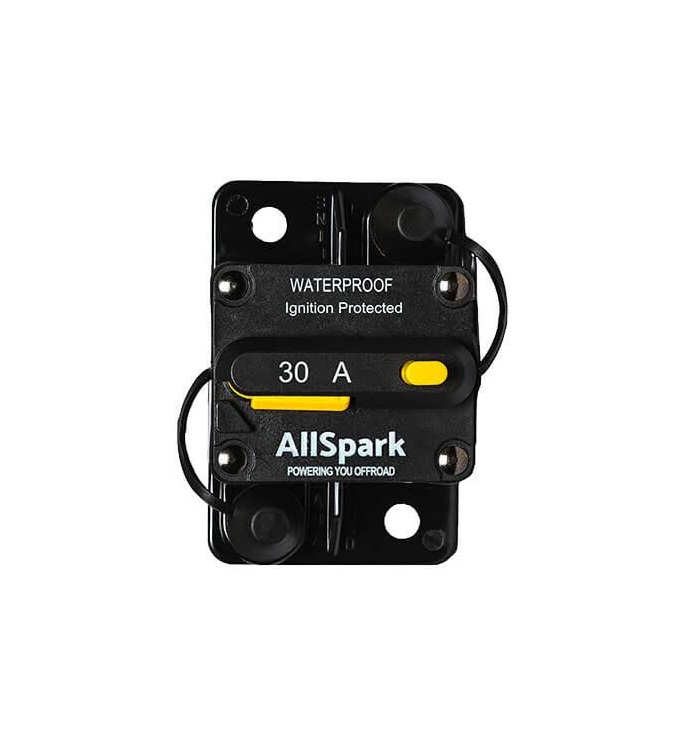

AllSpark 30A Circuit Breaker — Surface Mount
Original price was: $49.00.$32.00Current price is: $32.00.
AllSpark 30A manual-reset circuit breaker for 12–48V DC systems. IP67 waterproof and ignition protected, ideal for 4WD, caravan, marine and auxiliary battery applications.
Description
AllSpark 30A is a manual-reset circuit breaker suitable for 12–48V DC systems. It features push-to-trip operation, IP67 waterproofing and ignition protection, making it suitable for 4WDs, caravans, marine applications and auxiliary battery systems.
Specifications
- Current rating: 30A
- Voltage: 12–48V DC
- Reset: Manual reset / push-to-trip
- Interrupt rating: 3,000A @ 30V DC
- Waterproof: IP67
- Ignition protected: Yes
- Termination: 1/4-28 threaded stud
- Minimum cable size: 5mm
- Cable lug hole: 6mm
- Operating temperature: −32°C to +85°C
- Material: Black UL-rated 94V0 thermoset plastic
- Warranty: 5 years
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 12 × 10 × 7 cm |
| Brand | AllSpark |
