Description
THE HIGHEST SPECIFICATION LITHIUM BATTERIES ON THE AUSTRALIAN MARKET – NOW WITH BLUETOOTH
Discover the future of power storage with the AllSpark Bluetooth 12V 200Ah LiFePO4 battery. Designed and developed in Australia by Offroad Living, this high-performance battery integrates cutting-edge Bluetooth technology, allowing you to monitor and manage your power system effortlessly from your smartphone.
Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells. Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.
We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.
BATTERY

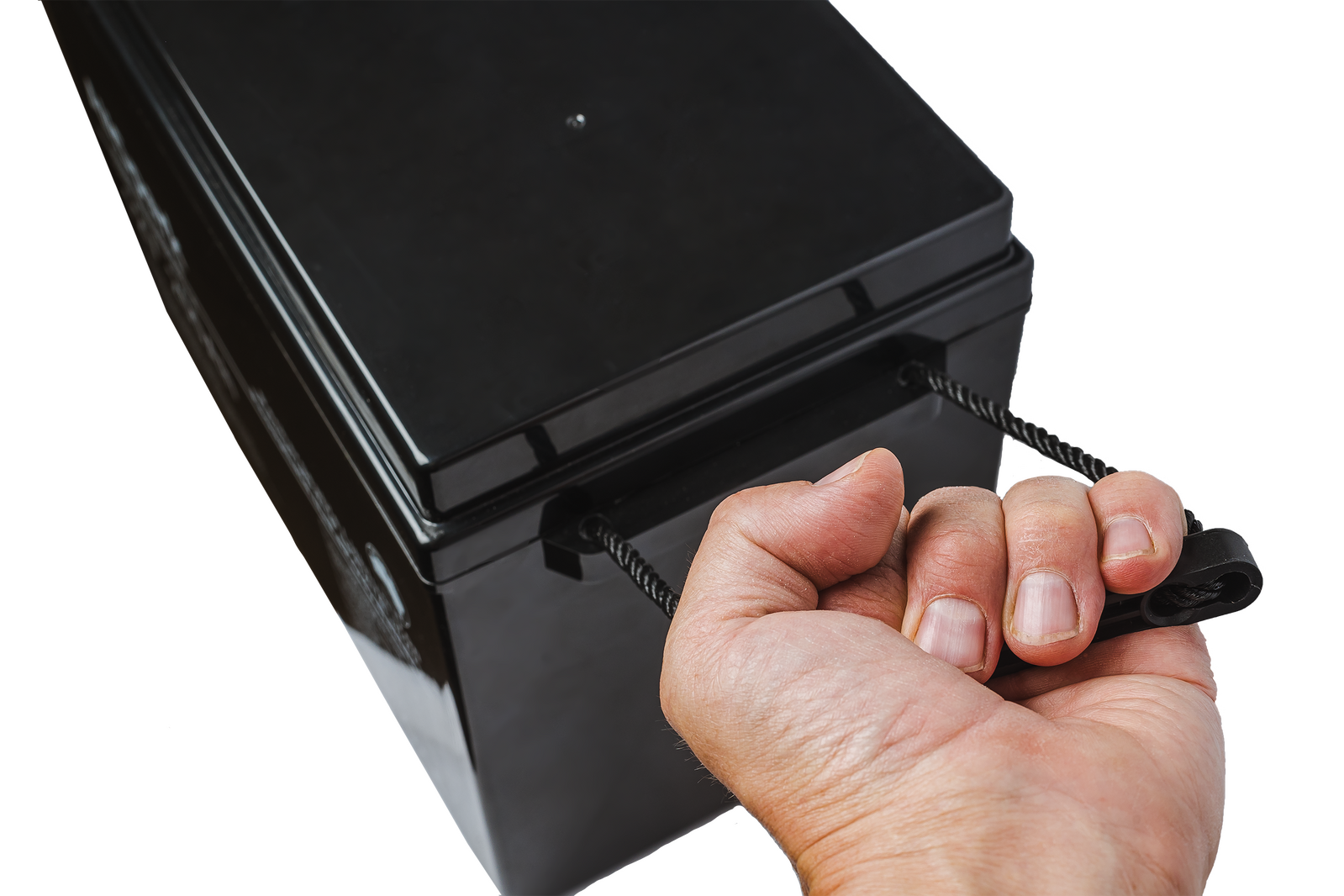

- ABS Case with fold out carry handles for ease of installation

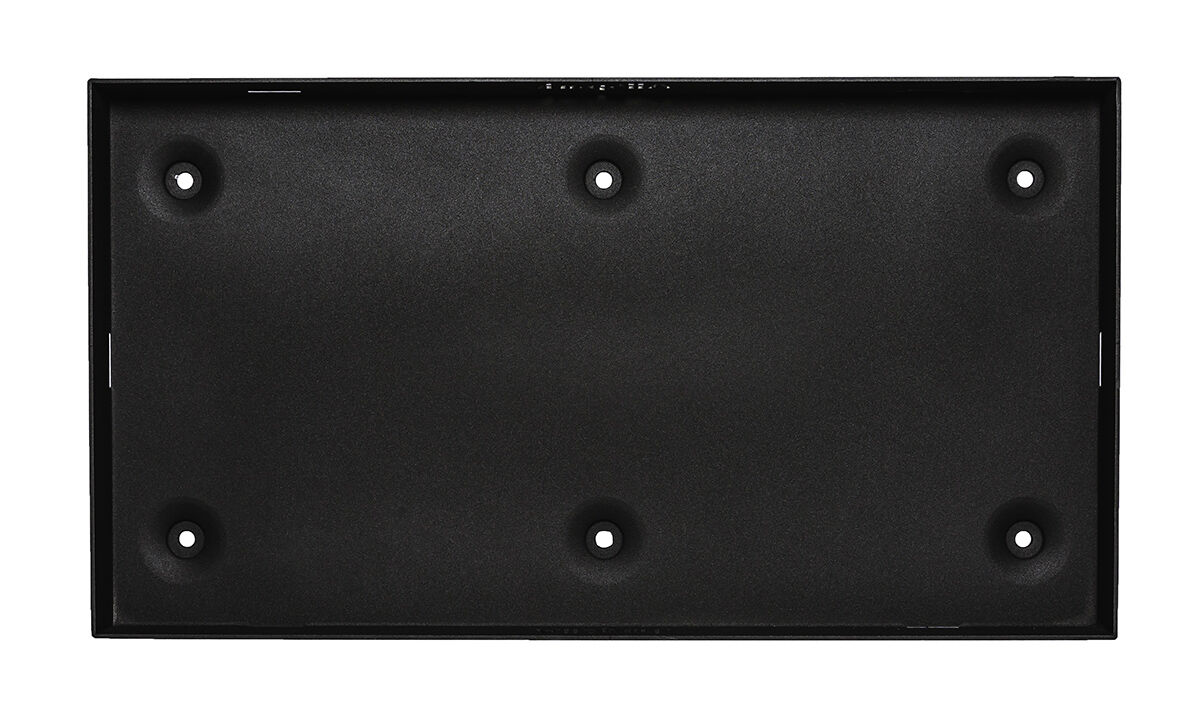

- Optional lightweight powder coast aluminium tie down tray & cam buckles straps made specifically for your AllSpark battery
BLUETOOTH INTEGRATION

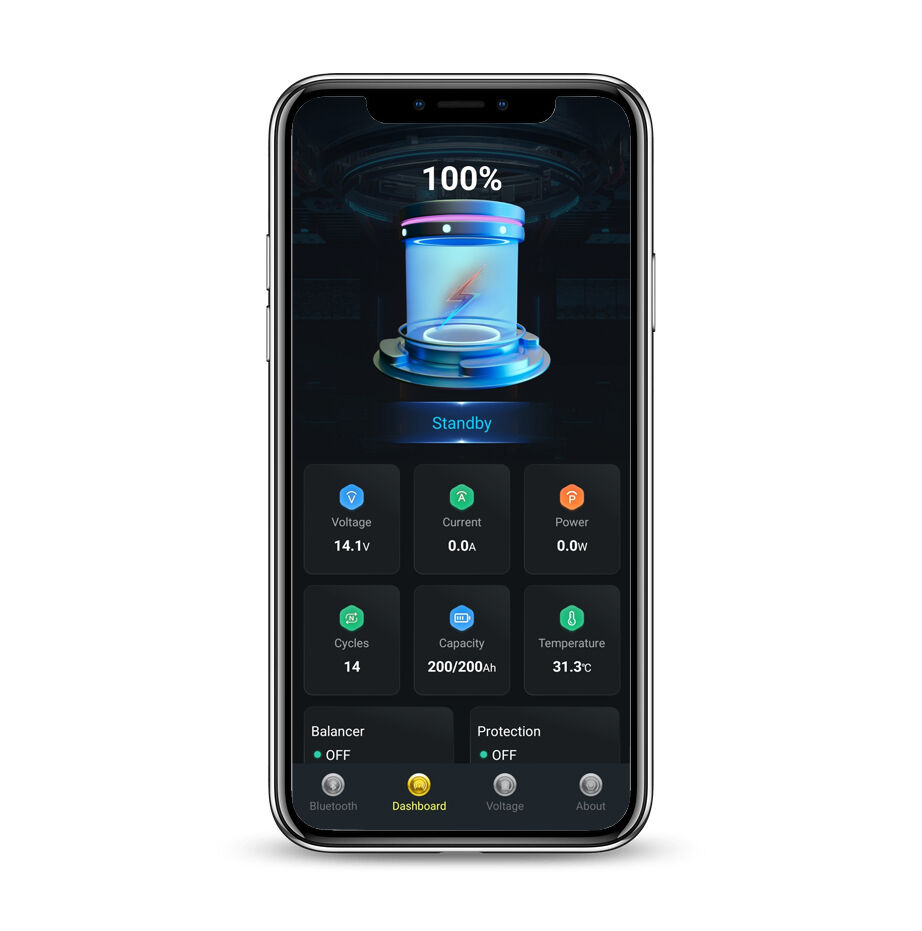

Easily monitor your battery’s performance and health via Bluetooth, accessing real-time data and settings from your smart device. The AllSpark app provides detailed metrics for optimal power management, ensuring comprehensive oversight via Bluetooth, including:
- State of Charge (%): Monitor the exact charge level.
- Total Battery Pack Voltage: Receive precise total voltage readings.
- Current In/Out (Net Value): Track the net current to and from the battery.
- Power In/Out (Net Value): View the net power to and from the battery.
- Cycles: Keep track of the number of cycles completed.
- Capacity: Observe the available amp-hours remaining based on the current state of charge.
- Temperature of BMS: Ensure the Battery Management System maintains optimal operating temperatures.
- Status of BMS: Check if the system status is normal or if it’s in protection mode.
- Status of Balancing of Cells: Assess the cell balancing activities.
- Charge and Discharge On/Off Switch: Utilize this for isolating the battery or waking up a drained battery from sleep mode.
- Individual Cell Voltages: Monitor voltages for each cell, ensuring balanced performance.
- History: Access historical data for informed analysis.
- Serial Number: Verify and reference the unique battery identifier.
- Advanced Settings: Prepare for further enhancements in future updates, scheduled for early 2025.
These parameters empower you with a granular view of your battery system, offering critical insights into its functionality and health.
CELLS
AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells. They have market leading high current ratings and very long life expectancy.
All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 8, 12 or 16 to achieve 12, 24, 36 or 48V. With cell continuous discharge ratings of 200A and peak output of up to 500A, you can be assured of a high performing battery to meet your high current demands.
Cell interconnecting Busbars are multi pass laser welded with more than 1″ of weld per busbar connection to make them bullet proof on corrugations
Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault
- High Pressure safety release vents that will open to release excess energy
- Internal Cell fusing
- Flame retardant Electrolyte
BATTERY MANAGEMENT SYSTEM (BMS)
Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer
- Low Voltage Protection
- High Voltage Protection
- Over Current Discharge Protection
- Over Current Charge Protection
- Low Temperature Protection
- High Temperature Protection
- Automatic Cell Balancing
- Short Circuit Protection
- Reverse Polarity Protection
WHATS IN THE BOX
- 1 x AllSpark Bluetooth 12V 200ah ABS Case LiFePO4 battery

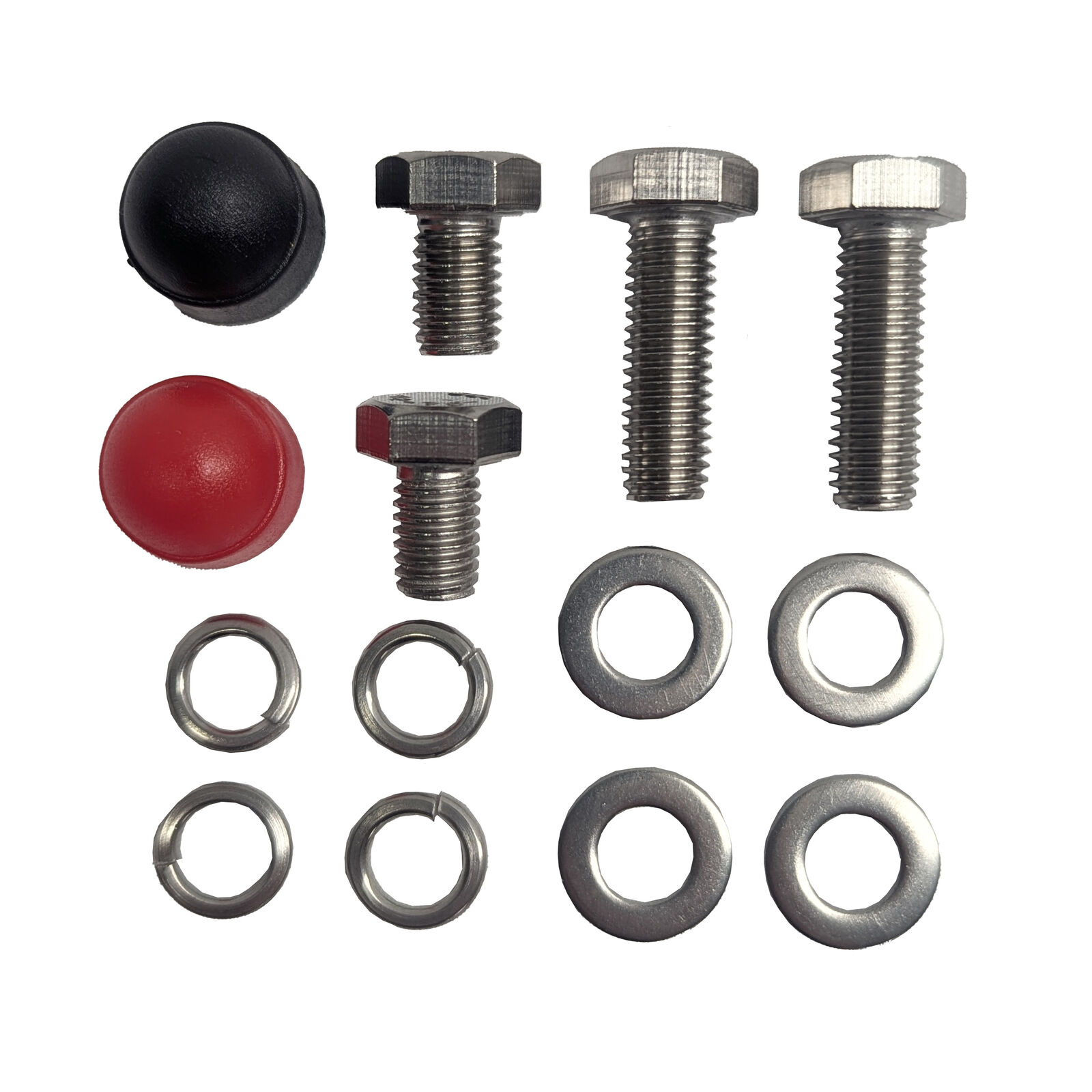

- Fixing kit – 2 lengths of M8 bolts, flat and spring washers
- Red/Black Terminal caps
WARRANTY
7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE
FEATURES
- New 2025 cell technology with compact cells and casing
- Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts
- Exclusive Solid state BMS designed and developed by Offroad Living
- Highest quality premium grade prismatic cells – resistance matched, long battery life and no voltage sag with a 20 year design life
- Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
- Power a 2500W Inverter from a SINGLE BATTERY – for high power devices including coffee machines, air conditioners, toasters and kettles
- Rapid charge – ability to charge in 2 hours
- Unlimited Parallel connection or series to 24v max
- Equivalent usable capacity to a 320ah AGM but weighs only 21kg
- Designed to handle high vibration environments
- IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
- 7 Year Warranty
